TUNNEL Supreme
INNOVATIVE RACK CONVEYOR DISHWASHERS
Thanks to the rack conveyor dishwashers of TUNNEL Supreme series, new efficiency goals are met.
The 3R PLUS three-steps rinse system, ensures considerable reduction of water consumption and unmatched quality results.
The reduction of heat losses thanks to walls thermal insulation, the heat recovered from the steam produced inside the machine (with option HDR), are some of the strengths of this series that claims an important reduction of wastages.
Their simplicity characterizes both the washing process and the daily cleaning and maintenance operations.
The wide LCD screen makes the access to operating functions easy and comfortable.
The IPX5 control panel, the rack-washing arms, the machine sanitization and the automatic drain options, make all the end-of-the-day operations much more comfortable.
CATALOGUE
PLX 2500
450 mm
GN 1/1 530x325 mm
Racks/hour: 100/250
Power supply: 400V 3N 50Hz
Total input: 22,3 kW
Basket size: 500x500 mm
Dimensions: 2250 x 900 x 1750/2210 H mm
PLX 3000
450 mm
GN 1/1 530x325 mm
Racks/hour: n. 135/300
Power supply: 400V 3N 50Hz
Total input: 23,3 kW
Basket size: 500x500 mm
Dimensions: 2850 x 900 x 1750/2210 H mm
PLX 3000 LC
450 mm
GN 1/1 530x325 mm
Racks/hour: 135/300
Power supply: 400V 3N 50Hz
Total input: 23,3 kW
Basket size: 500x500 mm
Dimensions: 2850 x 900 x 1750/2210 H mm
PLX 3300
450 mm
GN 1/1 530x325 mm
Racks/hour: 150/330
Power supply: 400V 3N 50Hz
Total input: 27,4 kW
Basket size: 500x500 mm
Dimensions: 3150 x 900 x 1750/2210 H mm

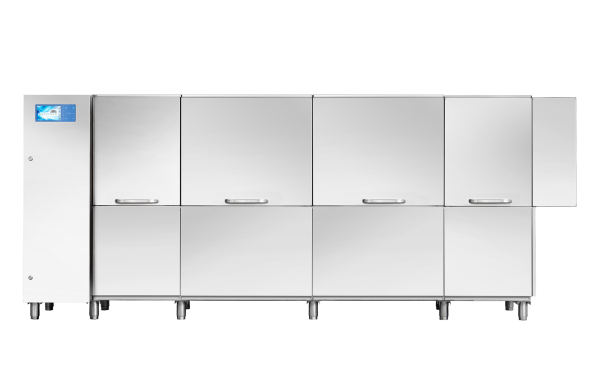

PLX 3600
450 mm
GN 1/1 530x325 mm
Racks/hour: 190/360
Power supply: 400V 3N 50Hz
Total input: 35,9 kW
Basket size: 500x500 mm
Dimensions: 3750 x 900 x 1750/2210 H mm
PLX 3600 LC
450 mm
GN 1/1 530x325 mm
Racks/hour: 190/360
Power supply: 400V 3N 50Hz
Total input: 35,9 kW
Basket size: 500x500 mm
Dimensions: 3750 x 900 x 1750/2210 H mm
PLX 4000
450 mm
GN 1/1 530x325 mm
Racks/hour: 210/400
Power supply: 400V 3N 50Hz
Total input: 38,6 kW
Basket size: 500x500 mm
Dimensions: 4050 x 900 x 1750/2210 H mm
TECHNICAL FEATURES
3R PLUS TRIPLE RINCE
GREAT RESULTS, LESS WASTE AND MORE EFFICIENCY
HDR - Heat & dryer recovery
MORE THAN A SIMPLE HEAT RECOVERY
The technology of the new optional HDR Heat Recovery + Dryer, leads to significant energy savings.
It exploits the heat otherwise dispersed in the working environment, to pre-heat both the inlet water and the inlet air, (respectively used to rinse and dry).
Room’s conditions are kept ideal.
Waste water temperature and installed power are significantly reduced.
With this option, the machine can be fed with cold water, and the dryer works on reduced operating costs.
The HDR module can be linear, or on 90° and 180° motorized-arc (HDR 200, HDRA209M, HDRA218M respectively).
USER INTERFACE
EASY AND COMPLETE
The user interface with multiple menu levels and differentiated accesses, provides comprehensive information to targeted users and service staff.
• Wide TFT 7” display.
• IPX5 control panel.
• Capacitive control panel.
• Frequently used keys shortcut.
• Constant monitoring of key operating parameters.
• Detailed information on alarms.
• Information on operating hours, energy and water consumption.
• Alarms and events report.
• HACCP supervisor interface.
• Chemicals level management and related alerts/information.
• Hints for scheduled maintenance.
• Language menu setting.
HEAT RECOVERY
THE NEW HDR HEAT RECOVERY + DRYER’S PLUS POINTS
• Less installed power to heat the rinse water
• Less installed power to heat the dryer’s air
• No water wasted to preserve the pre-wash temperature
• Steam condensation, and out coming air-temperature cooled down
• Steam reduction
• Impeccable drying result
• No heat pump needed
AUTOMATIC DRAIN
LESS WORK AND CLEANER WATER
At the end of the work session you can drain all tanks, by the touch of a key, with no need to remove overflows and dip into washing solution.
Thanks to dedicated motorized valves, one per tank, it is possible to selectively drain the pre-wash tanks, during the machine’s operations. This will ensure the continuous and balanced regeneration of pre-wash water without any waste, bringing immediate benefit to the next washing phases.
Moreover the automatic drain gives you the possibility to schedule the tanks filling and heating, giving the max level of comfort.
PREWASH MODULE WITH DRAWER STRAINER
Not available for models with LC 90° corner pre-wash.
LC: 90° CORNER INLET WITH PRE-WASH
Only for models PLX3000 e PLX3600. Not available when AS prewash module is installed.
APPLICATION AREAS
HOTELS AND RESTAURANTS
Large structures as well as farm holidays, taverns and pizzerias
CATERING
Catering, canteens, schools and airports now require extremely high quality hygiene standards.
Navy
Boats, ferries, civil and military ships need versatile machines
